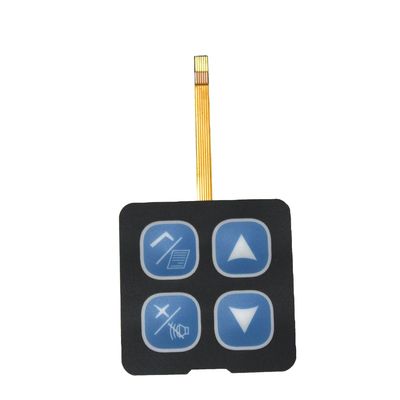

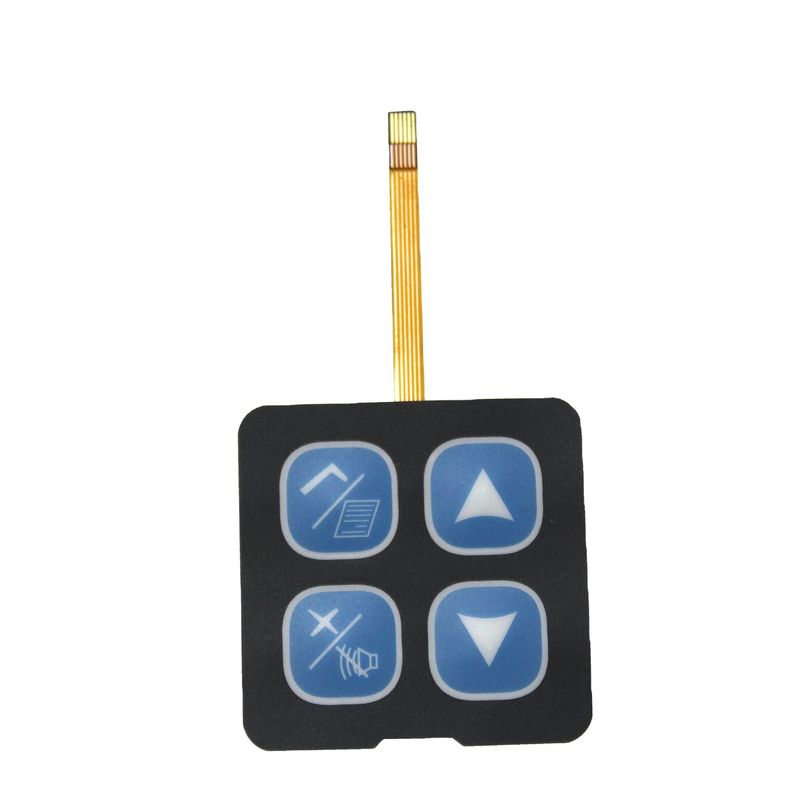

Tactile Flat Membrane Switch Orange Led Color Designed for Robust Operation in Medical Industrial and Consumer Electronics

Product Description:

The Flat Membrane Switch is an advanced Flat_Membrane_Interface designed to provide reliable and efficient performance in a wide range of applications. Utilizing a PET Circuit Flexible option, this Flat_Membrane_Interface offers exceptional durability and flexibility, making it ideal for environments where flexibility and resilience are paramount. The PET circuit ensures excellent electrical conductivity while maintaining a lightweight and thin profile, which contributes to the overall sleek design of the Flat Membrane Keypad.

One of the key features of this Flat Membrane Switch is its customizable surface finish. Customers can choose between a textured or gloss finish depending on their specific aesthetic and functional requirements. The textured finish provides a non-slip surface that enhances tactile feedback, making it easier to operate in environments where precision is critical. On the other hand, the gloss finish delivers a smooth and shiny appearance that enhances the visual appeal of the keypad, ideal for modern and stylish electronic devices.

The overlay of the Flat Membrane Keypad is made from high-quality PC (polycarbonate) material with a thickness of 0.175mm. This overlay offers excellent protection against wear and tear, ensuring that the keypad remains functional and visually appealing over an extended period of use. The PC overlay also contributes to the keypad’s resistance to chemicals, UV exposure, and physical impacts, which is essential for maintaining performance in harsh conditions.

Ingress protection is a critical consideration for many users, and this Flat Membrane Switch addresses this with an optional IP65 rating. This means the keypad can be sealed against dust ingress and protected from low-pressure water jets from any direction, making it suitable for outdoor or industrial environments where exposure to dust and moisture is common. The IP65 option ensures that the Flat_Membrane_Interface remains operational and reliable even in challenging conditions, enhancing its versatility and application range.

Operating temperature is another crucial aspect of the Flat Membrane Keypad's design. It is engineered to perform optimally within a wide temperature range from -40℃ to 70℃. This broad operating temperature range makes the keypad suitable for use in extreme cold or heat, which is particularly important for industrial, automotive, and outdoor applications. Whether exposed to freezing winter conditions or hot summer environments, the Flat Membrane Switch maintains consistent performance and responsiveness.

Overall, the Flat Membrane Switch combines flexibility, durability, and high performance in a compact and efficient design. Its PET Circuit Flexible option ensures a robust electrical connection, while the choice of surface finishes allows users to tailor the keypad’s look and feel to their specific needs. The PC 0.175mm overlay protects against environmental and mechanical damage, and the optional IP65 ingress protection provides added security against dust and water ingress. The extensive operating temperature range further broadens its usability across various demanding environments.

In summary, this Flat_Membrane_Interface and Flat Membrane Keypad is an excellent choice for anyone seeking a reliable, durable, and adaptable user interface solution. Its unique combination of flexible circuit technology, customizable surface finishes, robust protective overlay, optional ingress protection, and wide operating temperature range ensures it meets the highest standards of performance and longevity. Whether for industrial control panels, medical devices, consumer electronics, or other applications, this Flat Membrane Switch stands out as a top-tier product in the membrane switch market.

Features:

• Product Name: Flat Membrane Switch
• Operating Temperature Range: -40℃ to 70℃
• Quality Assurance: 100% Tested for reliability
• Size: Customized Size available to fit your requirements
• Ingress Protection: IP65 rating optional for enhanced durability
• Actuation Force: Ranges from 150g to 250g for optimal responsiveness
• Suitable for applications such as Flat_Membrane_Controller, Flat_Membrane_Keyboard, and Flat_Membrane_Switch

Technical Parameters:

Applications:

The Flat Membrane Switch, also known as Flat Membrane Keypad or Flat Membrane Panel, manufactured by Lunfeng or available as OEM, is a versatile and reliable product designed for a wide range of application occasions and scenarios. Originating from Shenzhen and certified with ISO9001:2015, this product ensures high quality and durability, making it suitable for various industries and environments.

One of the primary application occasions for the Flat Membrane Switch is in industrial control systems. Thanks to its robust construction, including a PC 0.175mm overlay and PET 0.125mm circuit, it can withstand harsh operating conditions. The optional IP65 ingress protection rating ensures the device is resistant to dust and water, making it ideal for use in factories, manufacturing plants, and outdoor equipment where exposure to contaminants is common.

In the consumer electronics field, the Flat Membrane Keypad is widely used in household appliances such as microwaves, washing machines, and remote controls. Its slim and flexible design allows it to fit seamlessly into compact devices while offering a responsive tactile feedback. The operating temperature range of -40℃ to 70℃ enables reliable performance in both cold and hot environments, expanding its usability in diverse settings.

Medical devices also benefit from the Flat Membrane Panel due to its easy-to-clean surface and customizable design. The high-quality materials and 100% tested quality assurance guarantee consistent performance, which is critical in healthcare applications. The product’s packaging options, including PE bags and cartons, can be customized according to customer requirements, facilitating safe shipment and storage.

Furthermore, the Flat Membrane Switch is extensively applied in automotive dashboards and control panels. The flexibility in design and the ability to produce single pieces with a minimum order quantity of 1pc allow manufacturers to create tailored solutions for specialized vehicle models. Payment terms such as T/T 100% before shipment and delivery times that are open for discussion provide additional convenience for clients.

Overall, the Lunfeng Flat Membrane Switch series offers a reliable, customizable, and durable input solution suitable for industrial controls, consumer electronics, medical equipment, automotive applications, and more. Its combination of quality certifications, protective features, and design flexibility makes it an excellent choice for any project requiring a dependable Flat Membrane Keypad or Panel.

Customization:

Our Flat Membrane Switch product, branded as Lunfeng or OEM, is designed to meet your specific needs for Flat_Membrane_Interface, Flat_Membrane_Panel, and Flat_Membrane_Controller applications. With model number Lunfeng and originating from Shenzhen, we ensure high-quality standards certified by ISO9001:2015.

We offer a minimum order quantity of just 1pc, with pricing based on your unique design requirements. Packaging is flexible and can be customized according to your request, including PE bags, cartons, or other options.

The product features a durable overlay made of 0.175mm PC and a circuit layer of 0.125mm PET, providing excellent surface finish options including texture or gloss. Each unit is 100% tested to guarantee quality and reliability.

For lighting customization, LED colors are available in orange or other colors according to your preferences. Delivery time and payment terms (T/T 100% before shipment) are to be discussed to best suit your project timeline.

Choose Lunfeng for your Flat_Membrane_Interface, Flat_Membrane_Panel, and Flat_Membrane_Controller needs and experience superior product customization services tailored to your specifications.

Support and Services:

Our Flat Membrane Switch product is designed to provide reliable and durable user interface solutions for a variety of applications. For technical support, please ensure that the switch is installed according to the provided specifications and guidelines. If you encounter any issues with the product, verify the electrical connections and check for any physical damage to the membrane surface.

We offer comprehensive services including customization, repair, and replacement of Flat Membrane Switches to meet your specific requirements. Our technical team is available to assist with troubleshooting, design consultation, and integration support to ensure optimal performance of the membrane switch in your application.

To maintain the longevity and functionality of your Flat Membrane Switch, avoid exposure to excessive moisture, extreme temperatures, and harsh chemicals. Regular cleaning with a soft, damp cloth is recommended to keep the surface free of contaminants.

For detailed product information, installation manuals, and troubleshooting guides, please refer to the documentation provided with your product or visit our support website.

Packing and Shipping:

Product Packaging:

The Flat Membrane Switch is carefully packaged to ensure protection during transit. Each unit is individually wrapped in anti-static protective film to prevent damage from electrostatic discharge. The switches are then placed in custom-fit foam inserts to avoid bending or pressure damage. Multiple units are packed securely in sturdy, corrugated cardboard boxes with cushioning materials to absorb shocks and vibrations.

Shipping:

Flat Membrane Switch products are shipped using reliable carriers with tracking options available. We offer various shipping methods including standard, expedited, and express delivery to meet different customer needs. All packages are clearly labeled with handling instructions and shipping information to ensure safe and timely delivery. International shipping is also available with appropriate customs documentation provided.

FAQ:

Q1: What brand and model is the Flat Membrane Switch?

A1: The Flat Membrane Switch is available under the brand name Lunfeng or OEM, with the model number Lunfeng.

Q2: Where is the Flat Membrane Switch manufactured?

A2: It is manufactured in Shenzhen, China.

Q3: What certifications does the Flat Membrane Switch have?

A3: The product is certified with ISO9001:2015, ensuring quality management standards.

Q4: What is the minimum order quantity and pricing for the Flat Membrane Switch?

A4: The minimum order quantity is 1 piece, and the price is based on the design specifications.

Q5: How is the Flat Membrane Switch packaged and what are the payment terms?

A5: The switch is packaged in PE bags, cartons, or according to the customer's request. Payment terms are T/T 100% before shipment.

Q6: What is the typical delivery time for orders?

A6: The delivery time is to be discussed based on the order details and design requirements.
